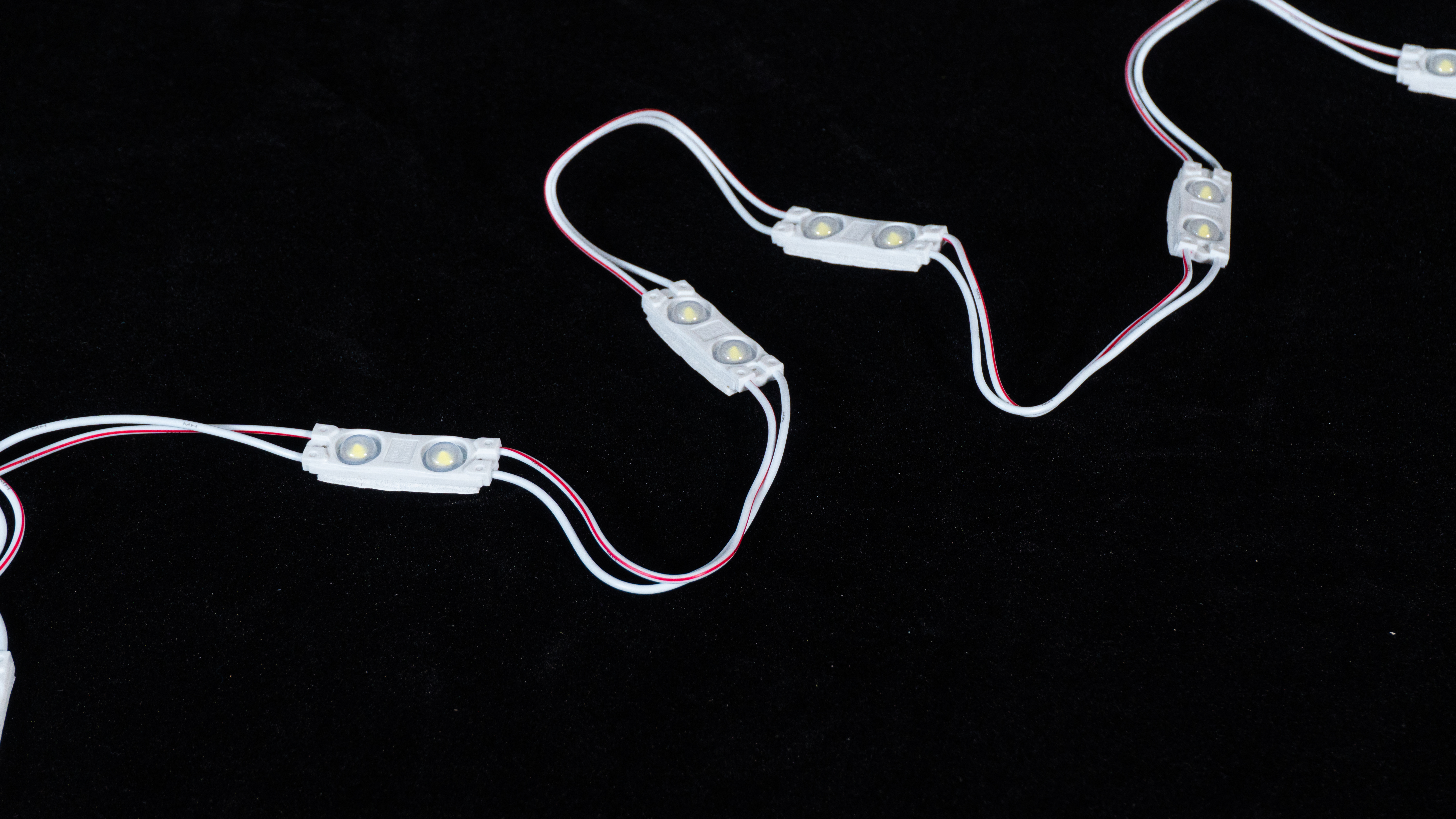

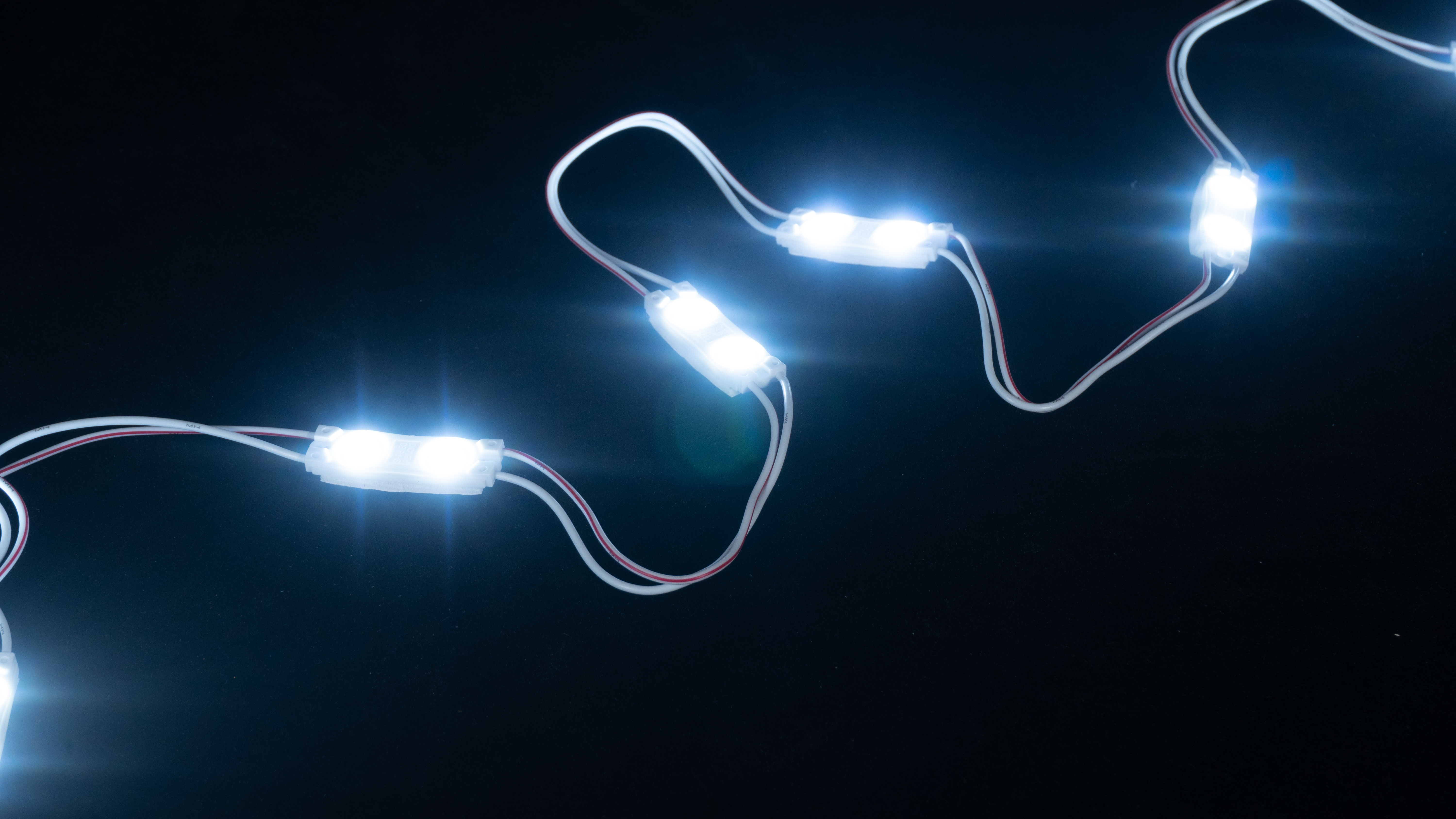

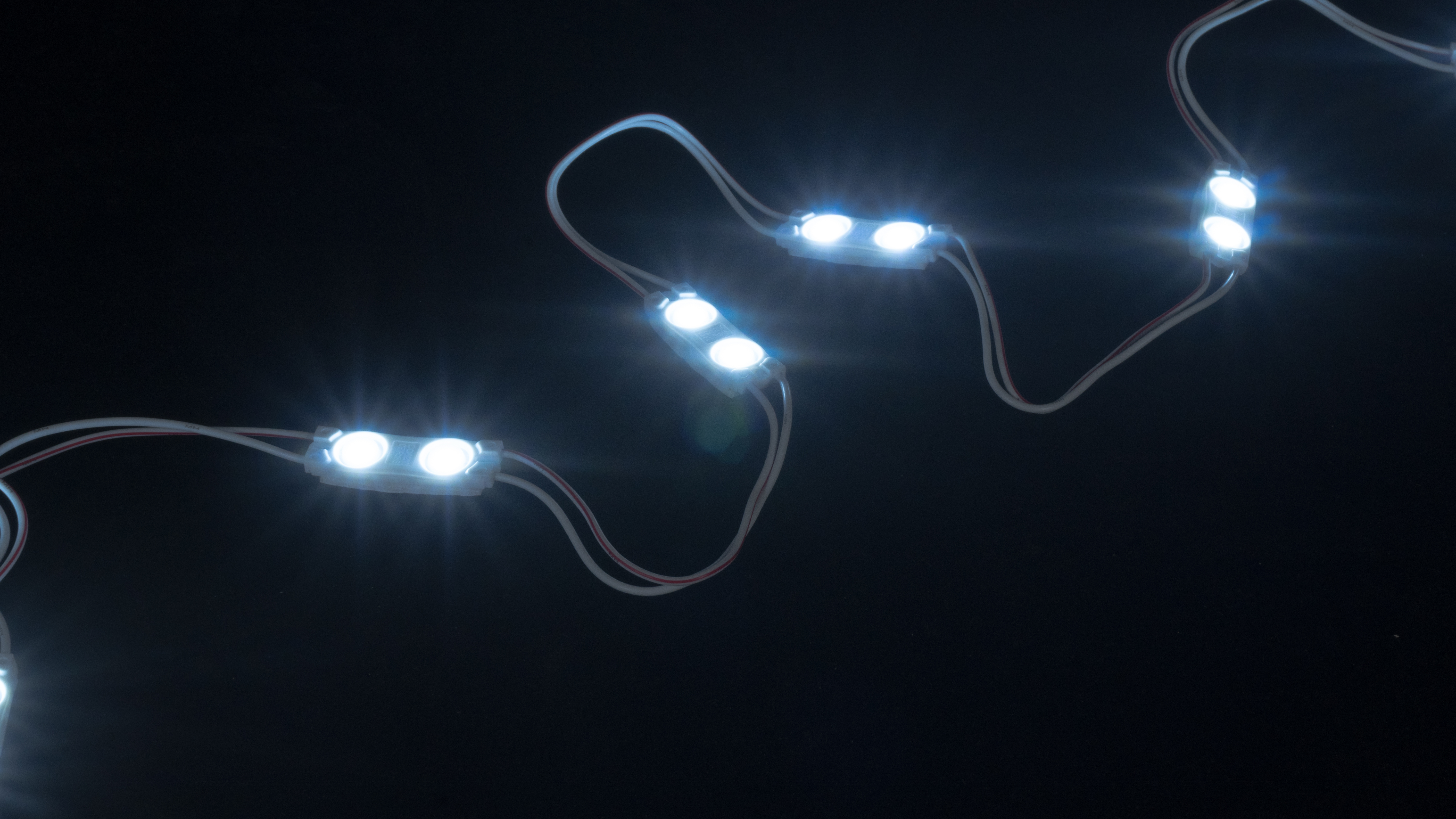

Z2 LED module with cold white glow. LED Type SMD 2835. Standard series LED module containing Sanan LEDs.
The rear of the enclosure is made of a metal substrate that improves heat dissipation, thereby increasing module life.
The lenticular LED modules are used for 3d letters, signs and lightboxes with a depth of 60 mm to 100 mm.
The lenticular LED modules are used for 3d letters, signs and lightboxes with a depth of 60 mm to 100 mm.
|
Size L (mm)
|
41 |
|
Size W (mm)
|
13 |
|
Size H (mm)
|
5 |
|
Box size L (mm)
|
510 |
|
Box size W (mm)
|
360 |
|
Box size H (mm)
|
310 |
|
Guarantee
|
3 years |
|
Box mass (kg)
|
20.8 |
|
Quantity per box (pcs)
|
4600 |
|
Color/color temperature (K)
|
Cold white (9000К) |
|
Recommended location depth (mm)
|
60-100 |
|
Wire length (mm)
|
131 |
|
Distance between the centers of the modules in the chain (mm)
|
172 |
|
Quantity per pack (pcs)
|
200 |
|
Number of elements in the chain (pcs.)
|
20 |
|
Protection level
|
IP67 |
|
Angle of luminous flux (°)
|
170 |
|
Luminous flux (Lm)
|
88 |
|
Voltage (V)
|
12 |
|
LED Type
|
SMD2835 |
|
Diode count (psc)
|
2 |
|
Power (W)
|
0.85 |
